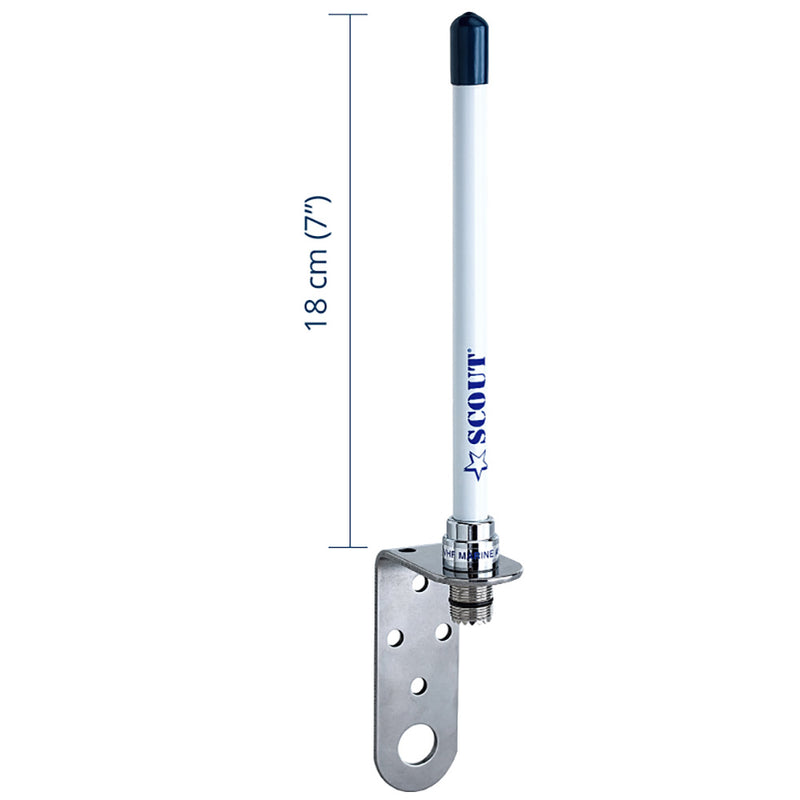

Scout KM-10 VHF Fiberglass Antenna 0,18M (7") Length

KM-10 VHF Fiberglass Antenna 0,18M (7") Length

With only 18 cm in length, the KM-10 is the shortest VHF antenna in the range, and it is distinguished by its elegant look and glossy chrome finishes. Designed for fast and small boats, thanks to its versatility, it is equally adaptable to sailboats and medium-sized boats. It is equipped with a stainless steel bracket that makes the installation easy and stable, and gives the antenna perfect stability even during fast navigation and rough seas.

It is equipped with 18 m RG 58 coaxial cable and a PL-259 male connector.

Features:

• 100% Waterproof Antenna
• 18 cm length
• Anti - UV high gloss finish
• 18 m coaxial cable RG 58 CU MIL
• PL-259 connector

Specifications:

• Frequency: 156-162 MHz
• Impedance: 50 ohms
• Electrical Length: 1/4 λ
• V.S.W.R.: < 1,5:1
• Polarization: Vertical
• Gain: Unity Gain
• Max Power Input: 50 W
• DC Ground: No
• Whip Material: Fiberglass
• Coaxial Cable: 18 m (59′) RG 58 CU MIL
• Mounting: Stainless Steel Bracket
• Length: 18 cm (7″)
• Weight: 0,16 kilo
