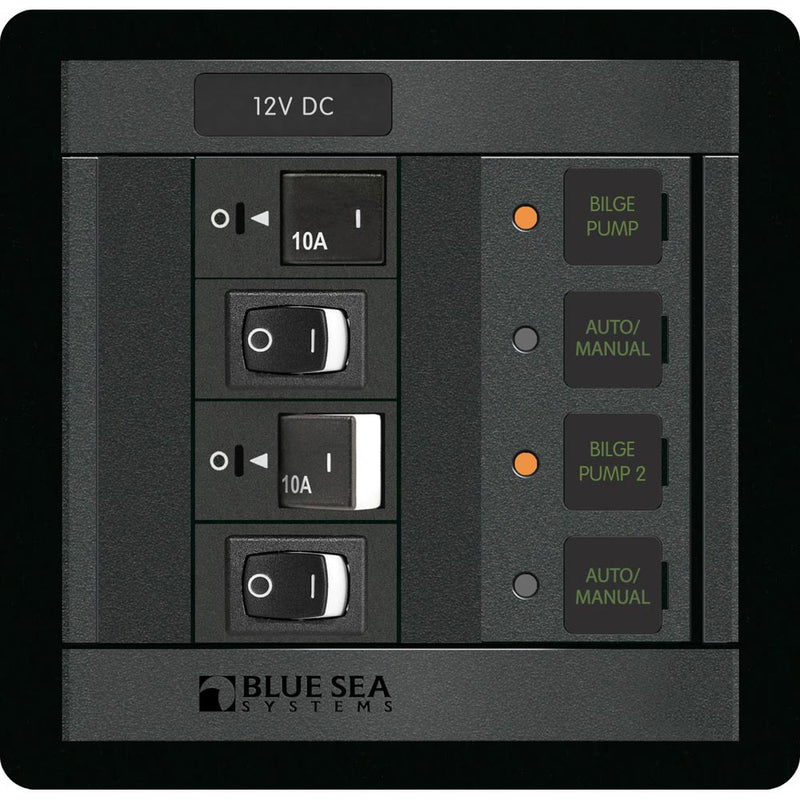

1522 360 Panel Dual Bilge Pump Control

360 Panel Dual Bilge Pump Control

Controls two bilge pumps
Restricted-off circuit breakers and manual override switches

• On-indicating LED indicates power is available at the bilge pump float switch

• Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch

• Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation

Specifications:

• Nominal Voltage: 12V DC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
