165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D

165T/275LHW Pocket Mount Combo Wide Beam Transducer for DFF3D

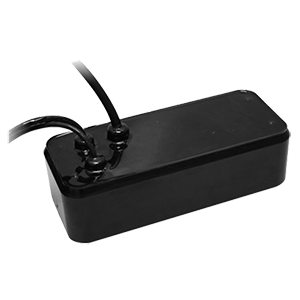

This is the housing (12L x 5W x 3.5H) that contains DFF3D elements along with CHIRP elements.

Features:

• DFF3D operating frequency 165 kHz
• Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
• High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
• 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and a pigtail cable for the DFF3D
• Recommended for a DFF1-UHD and DFF3D installation
• Built-in motion sensor
• Built in temp sensor
